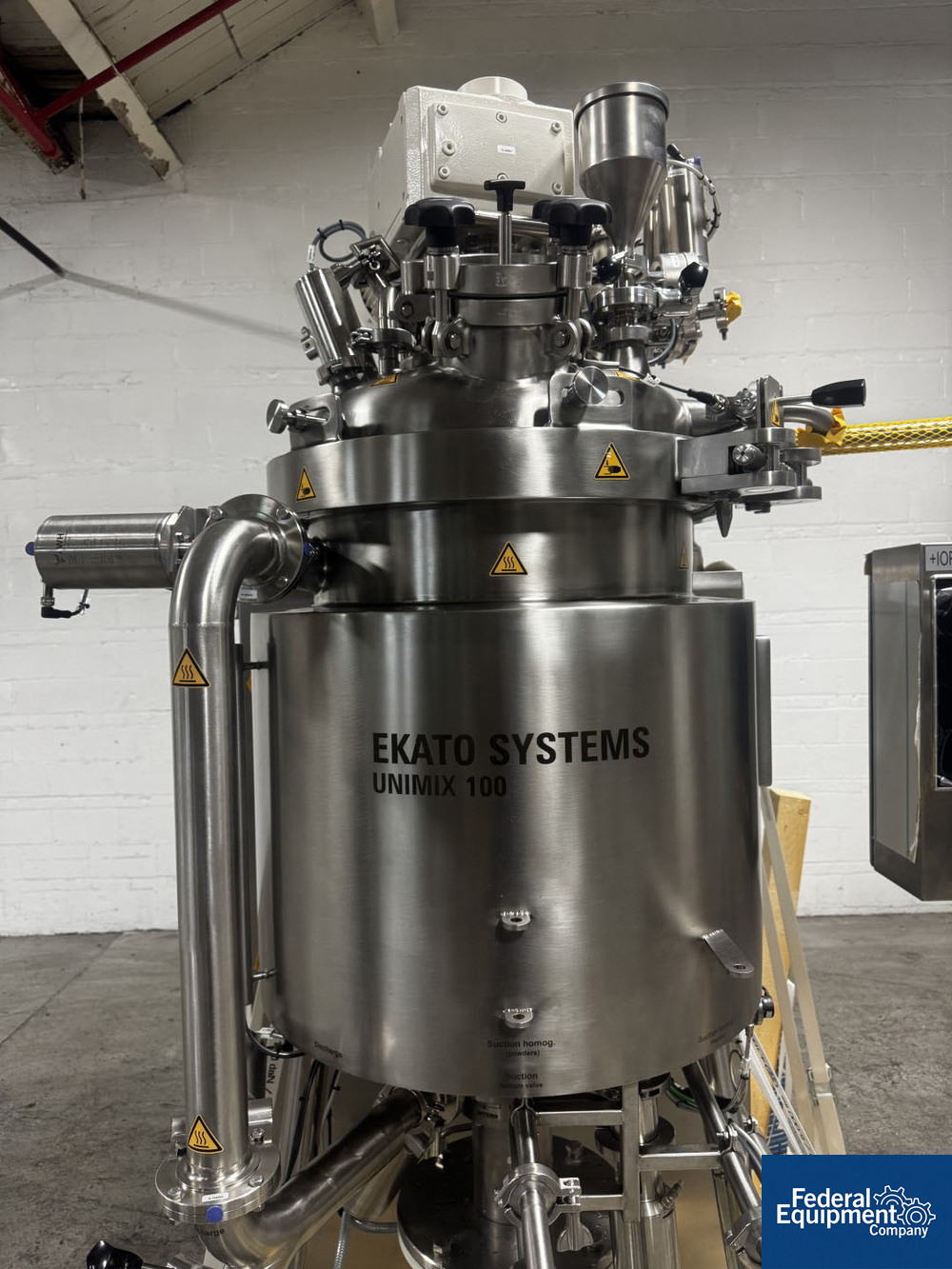

100 Liter Ekato Unimix SRC 100 Triple Motion Vacuum Mixer

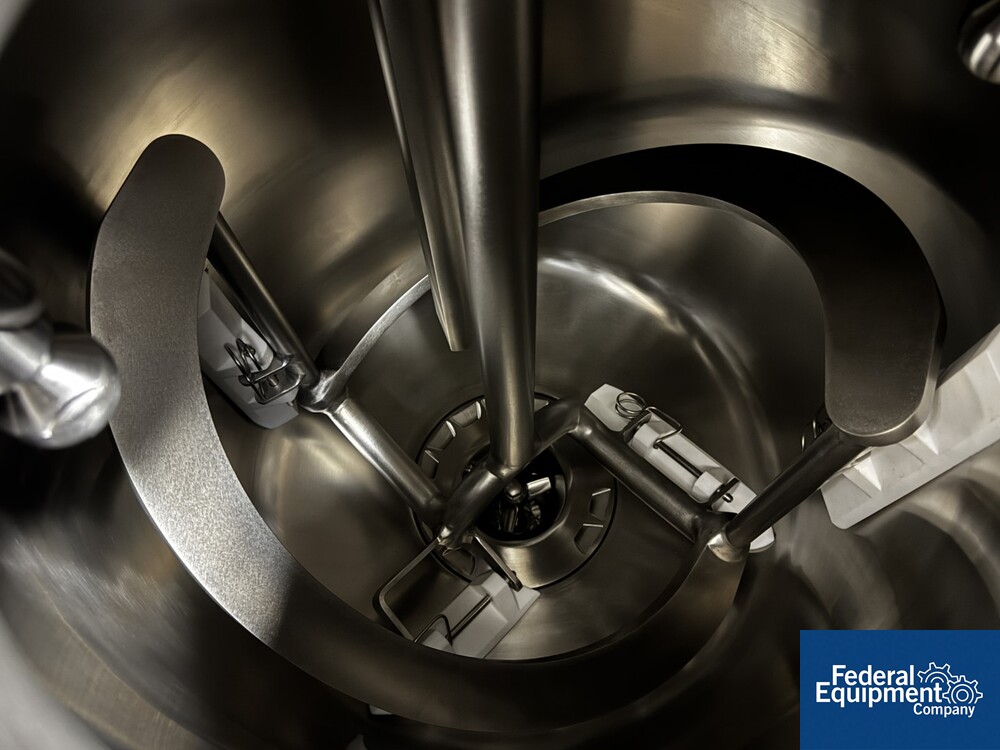

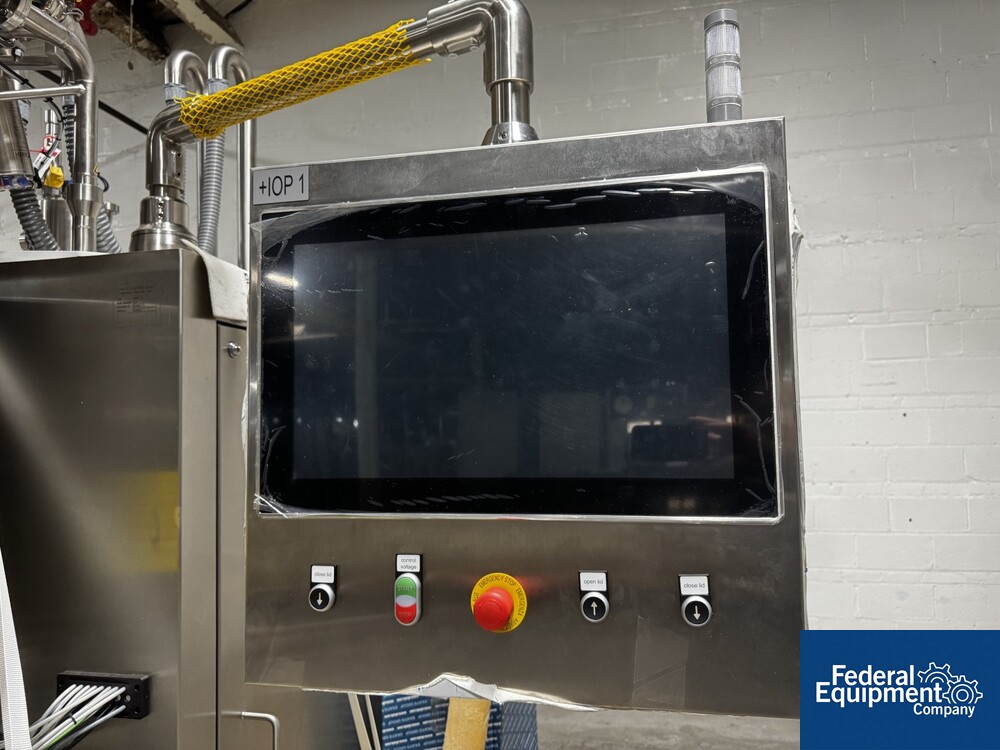

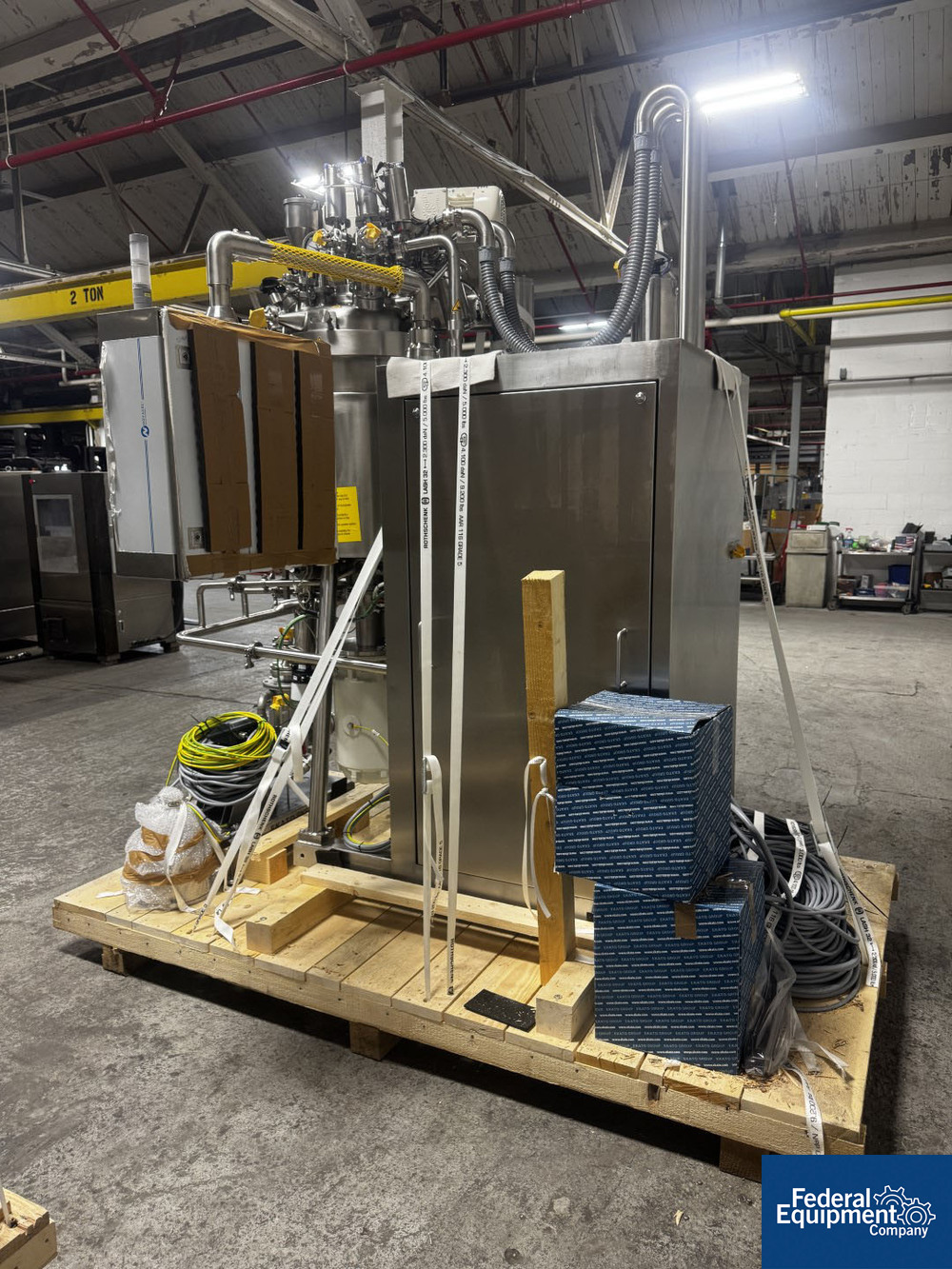

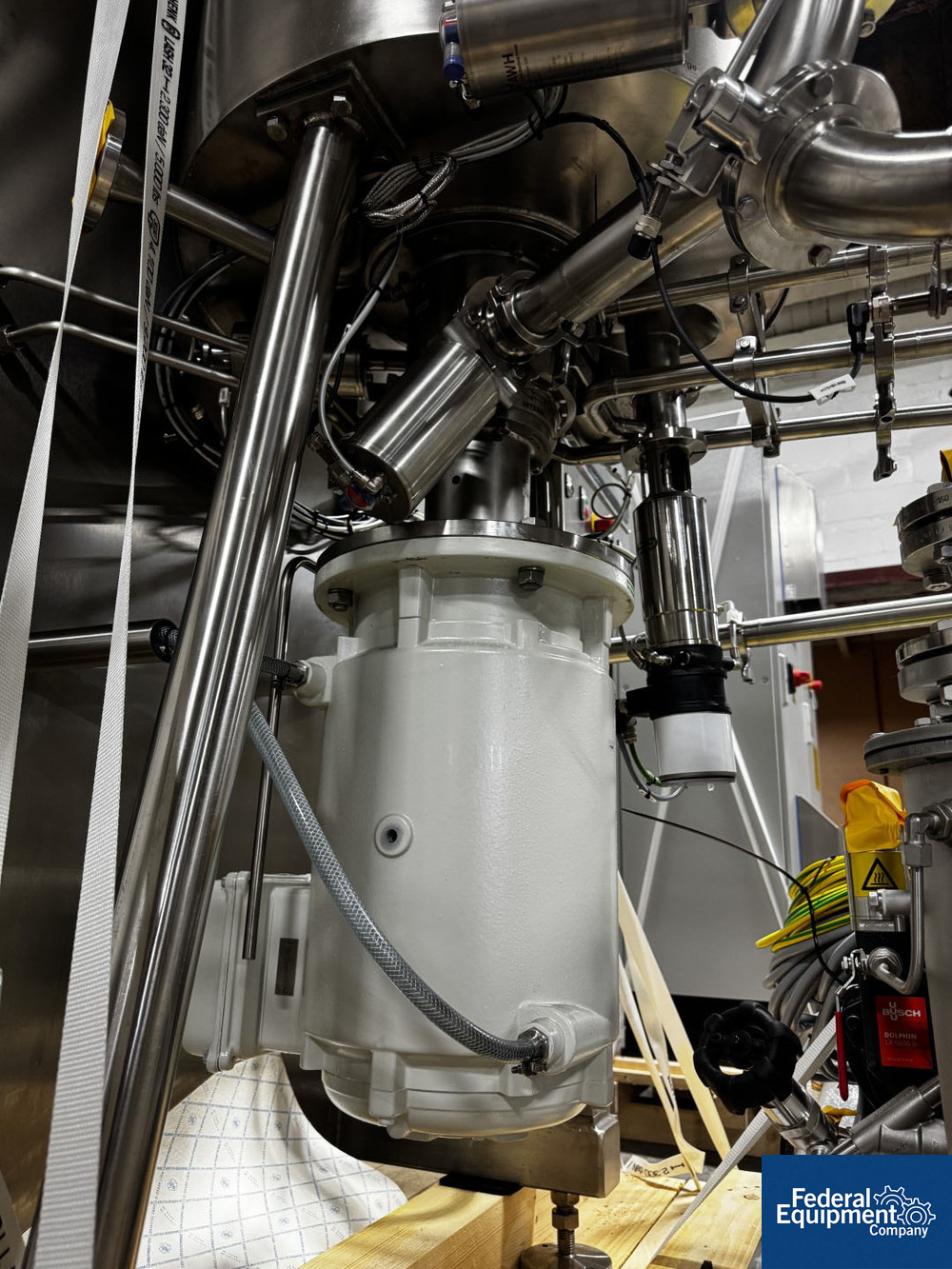

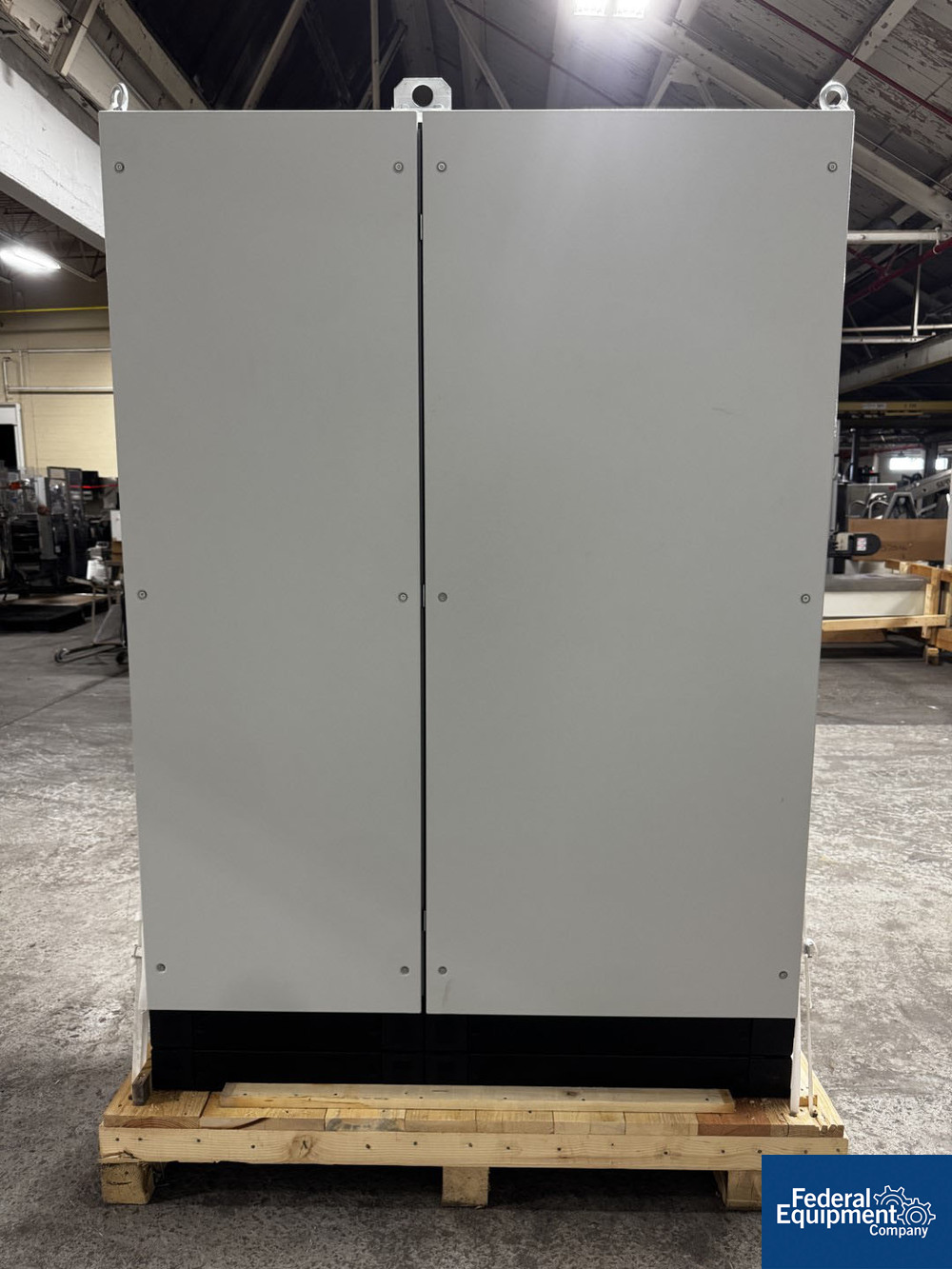

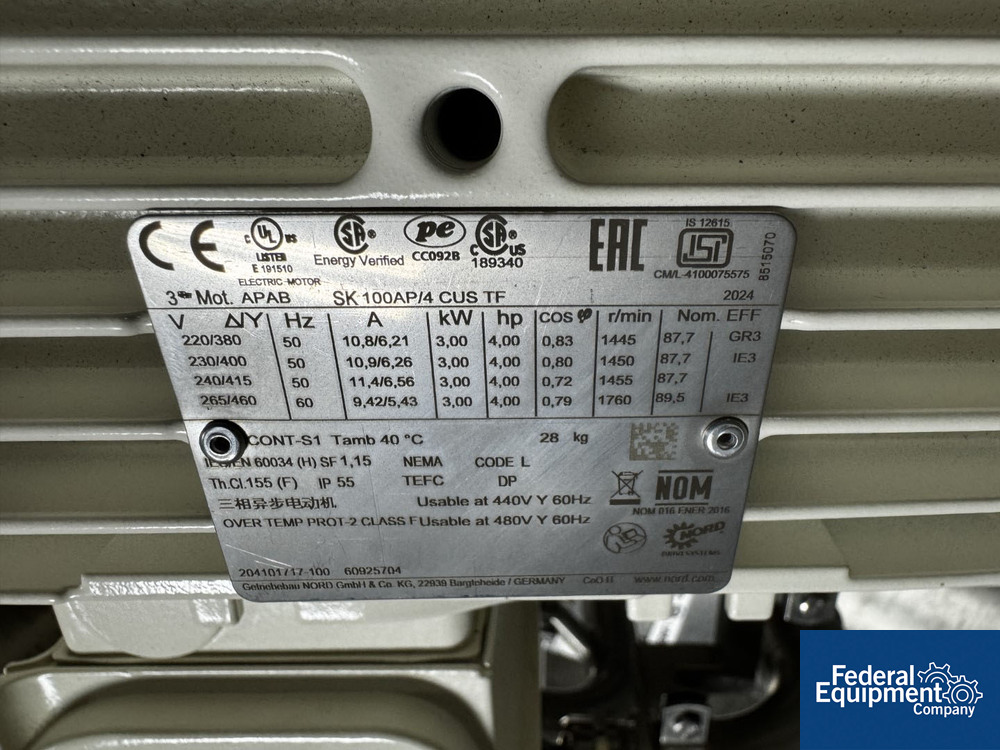

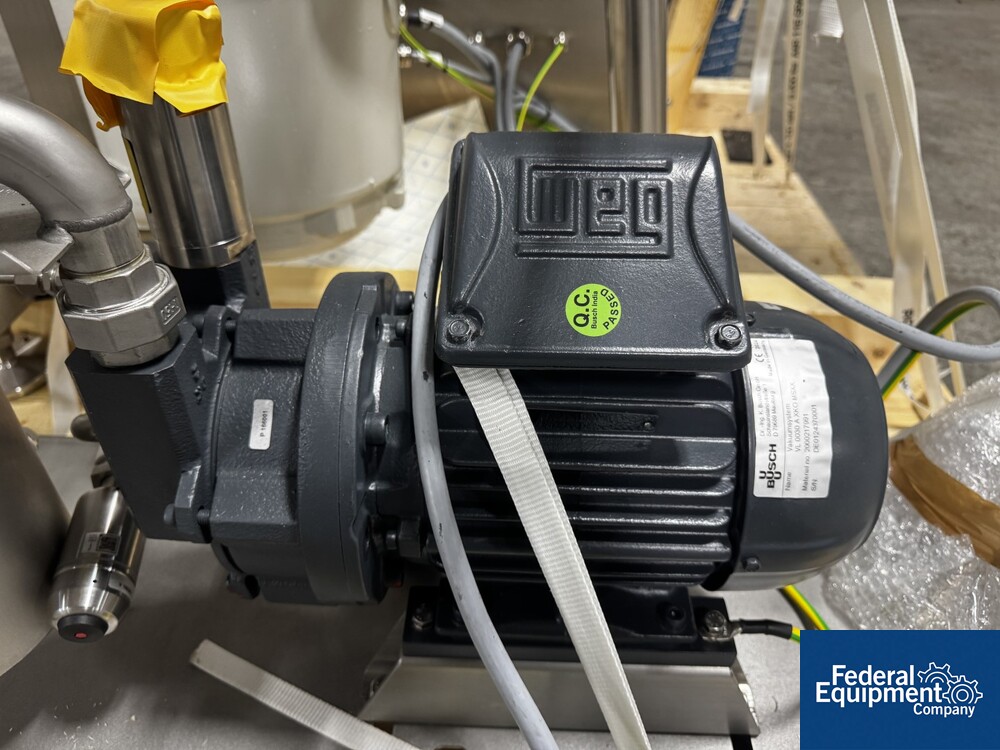

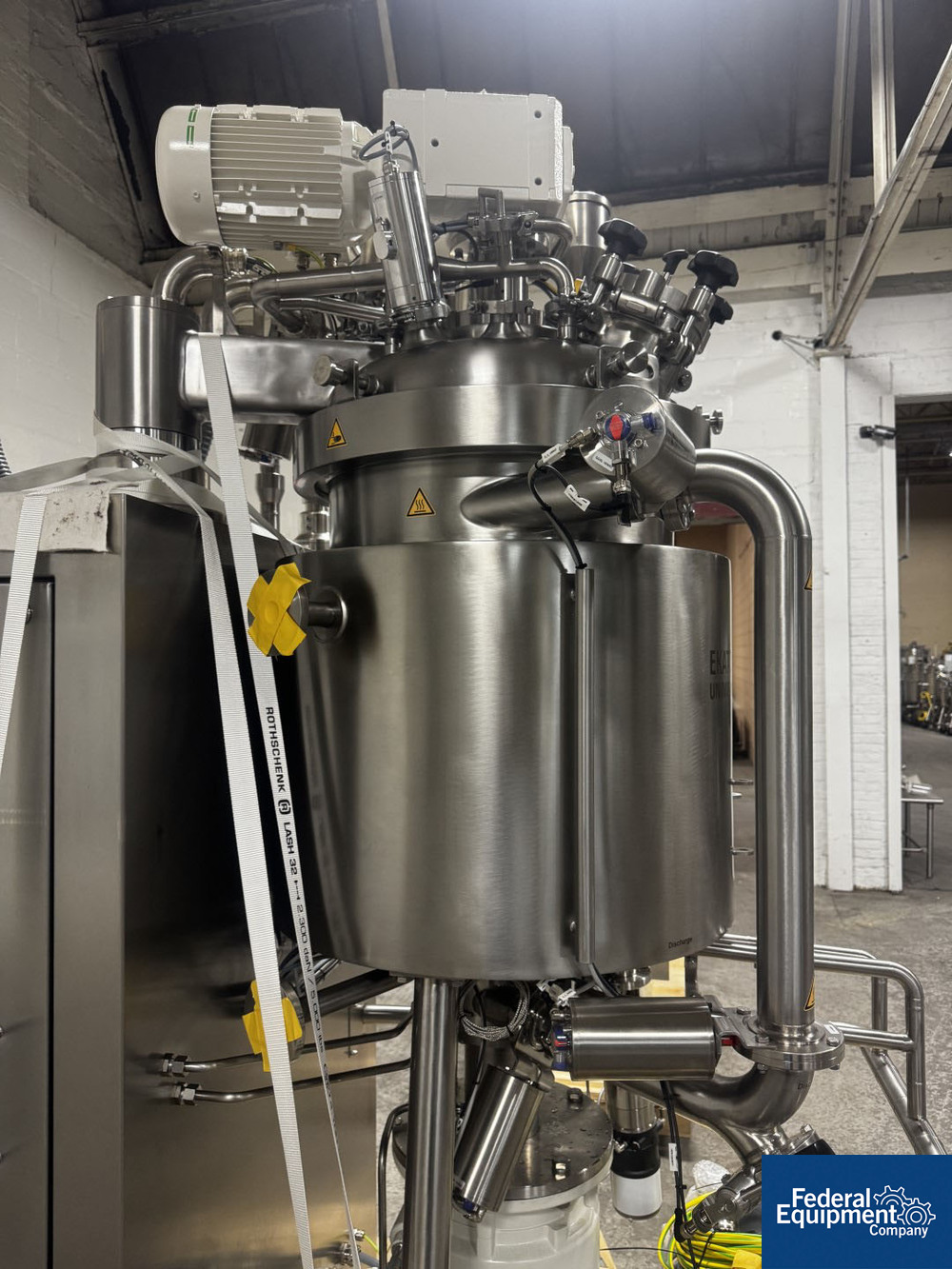

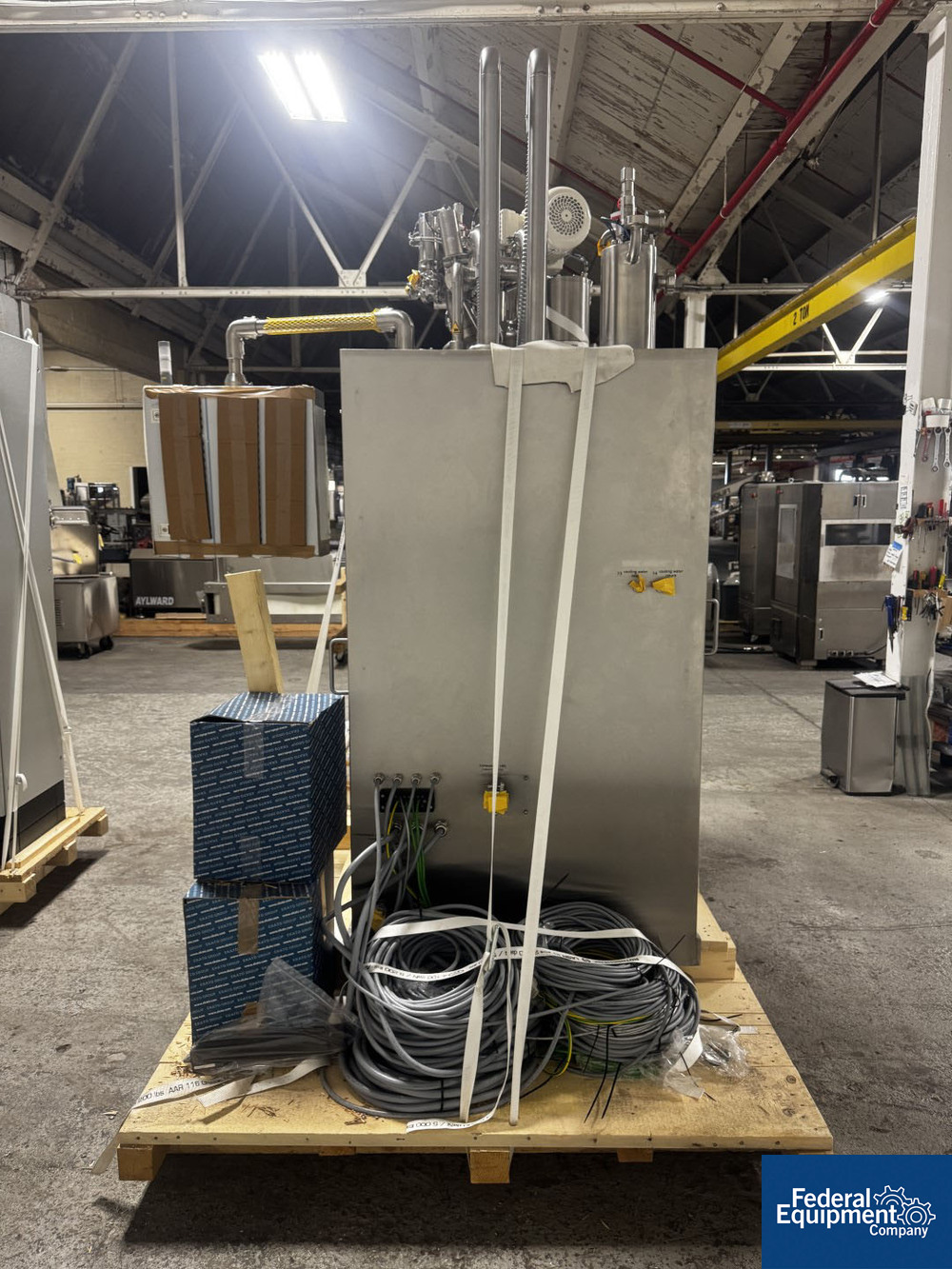

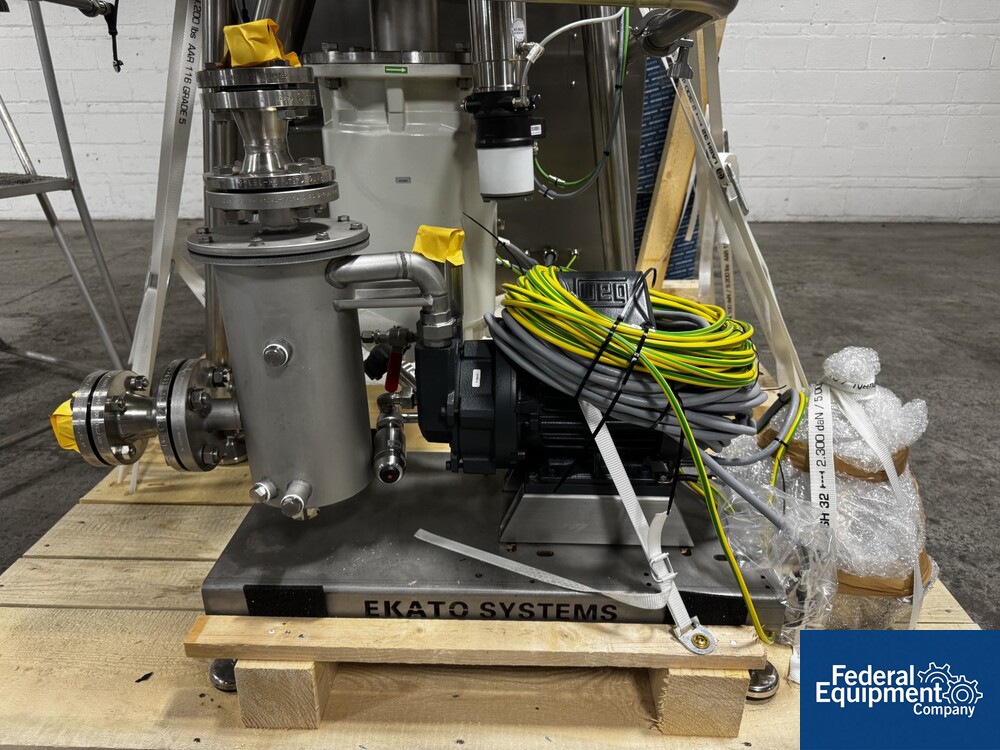

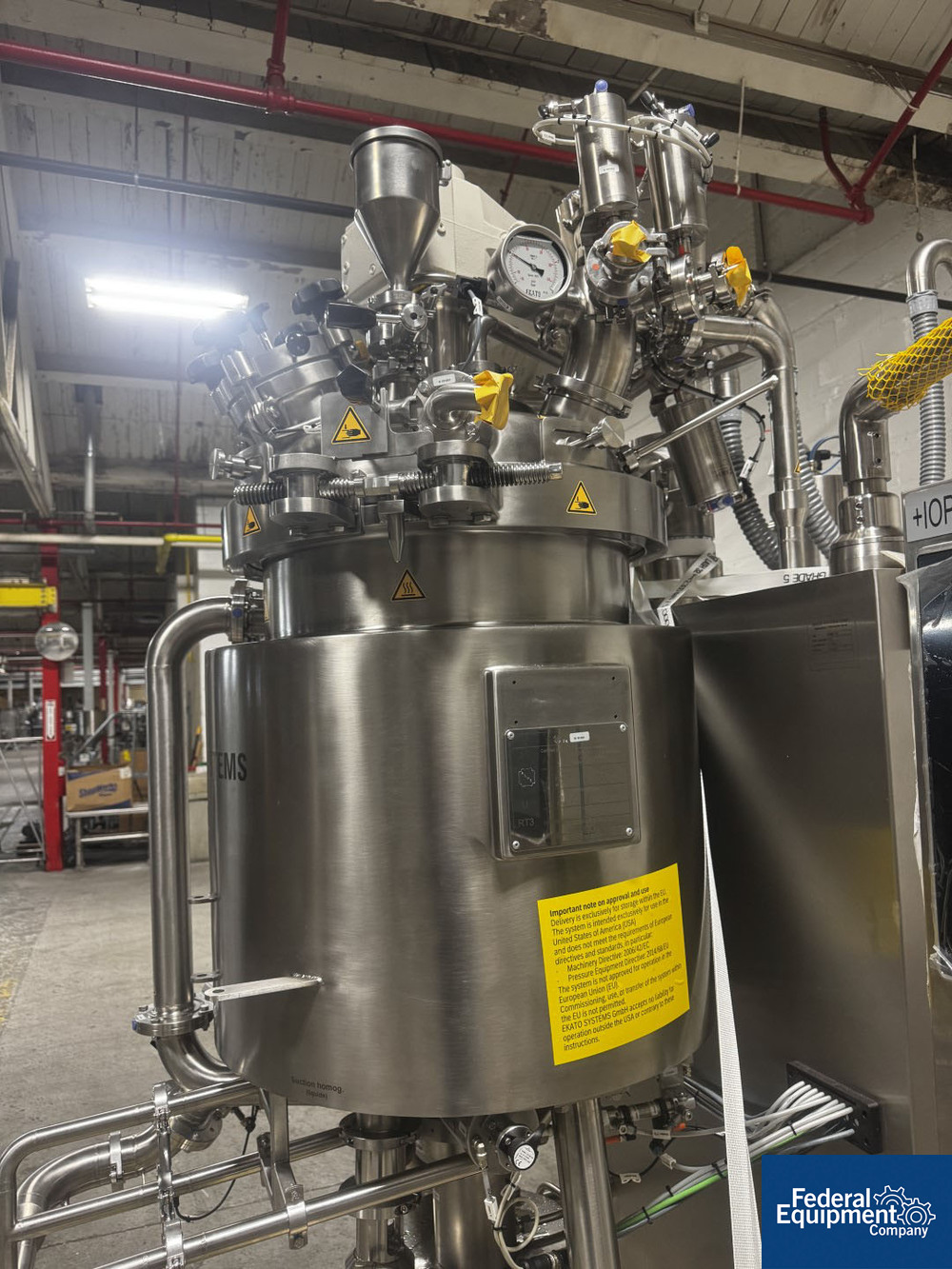

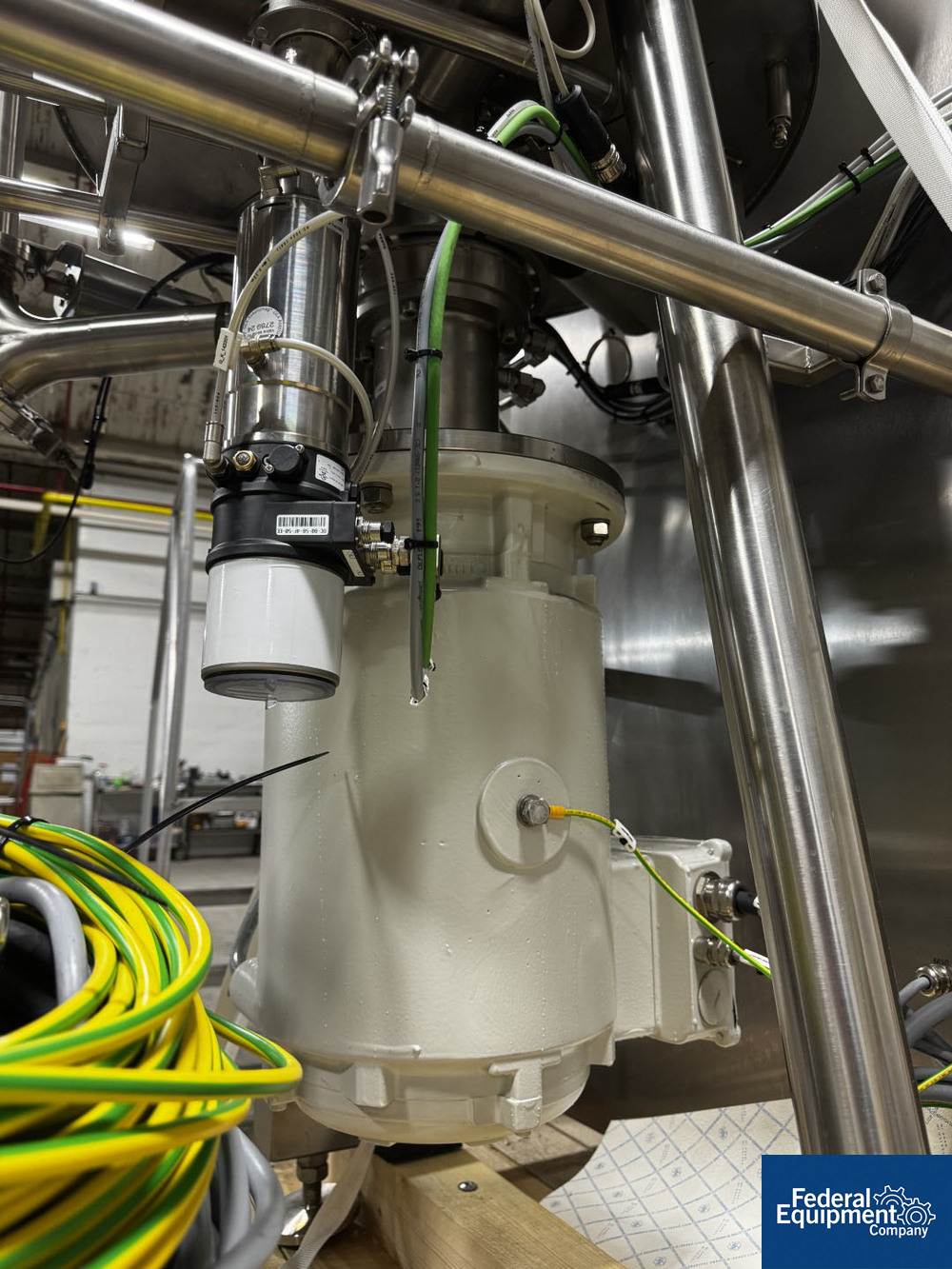

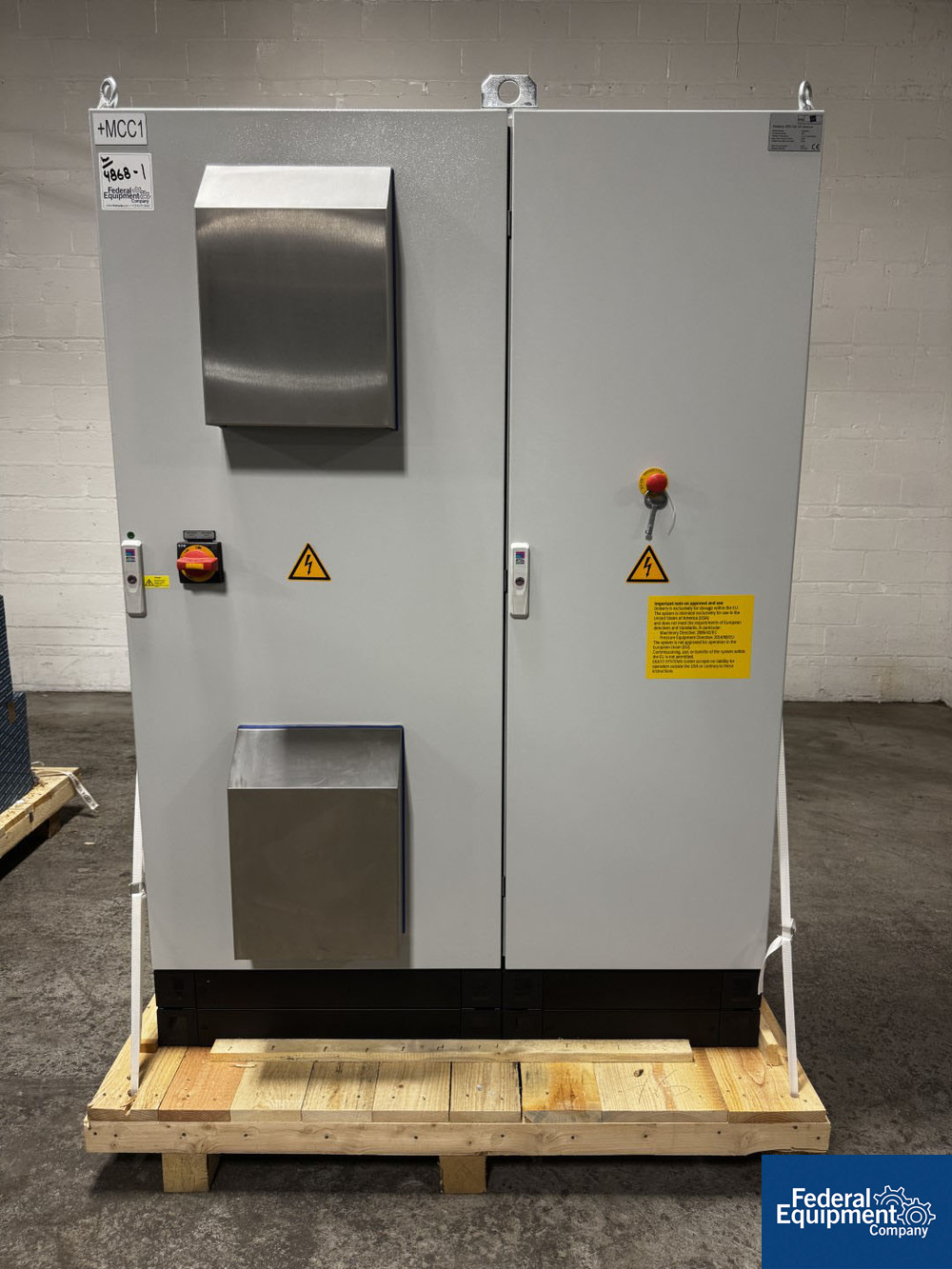

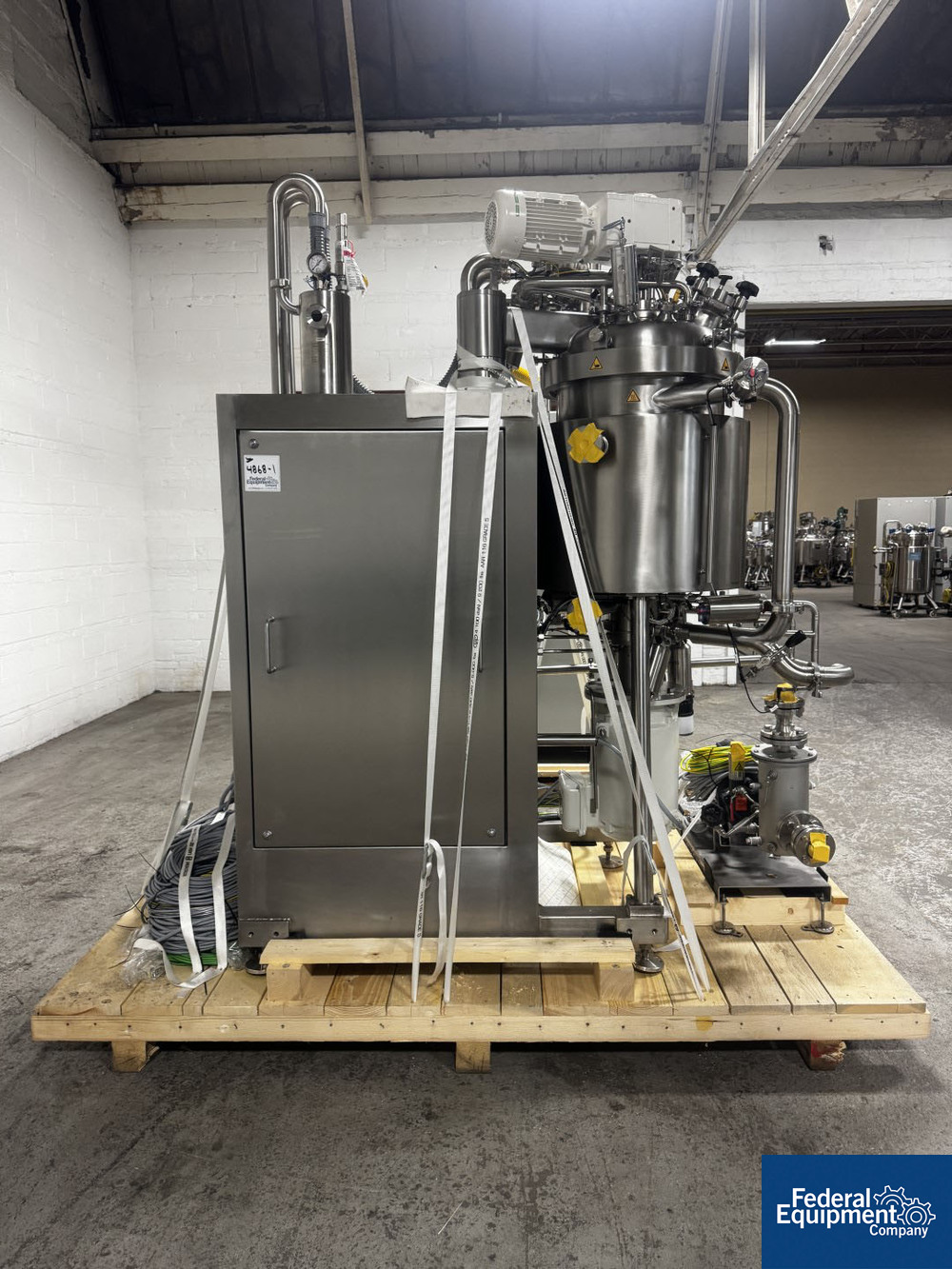

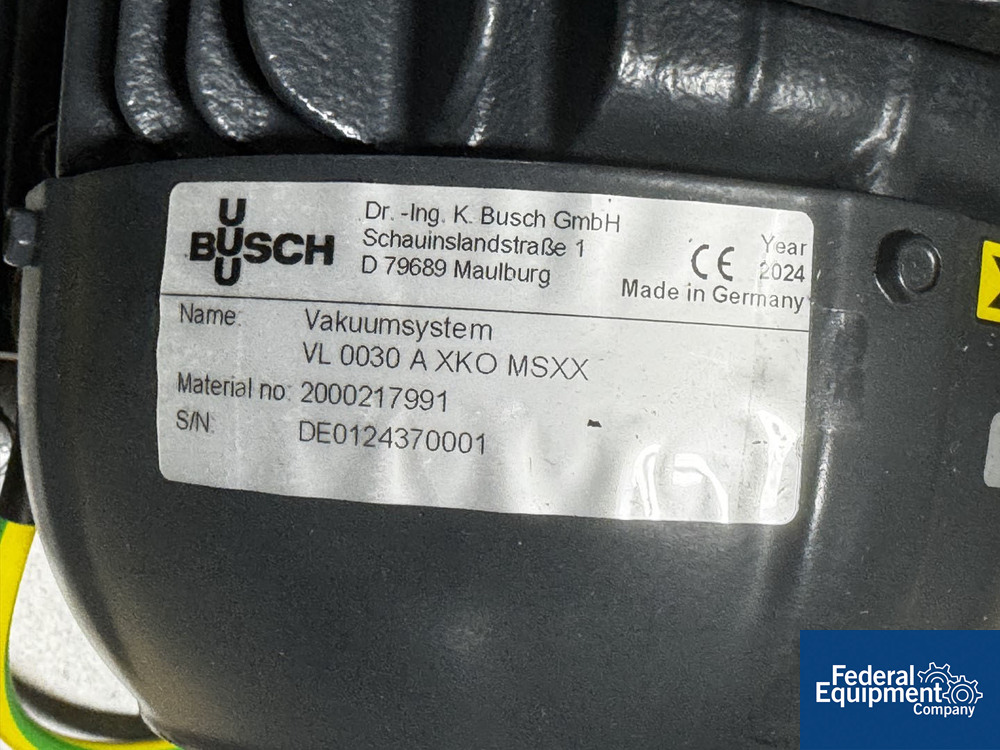

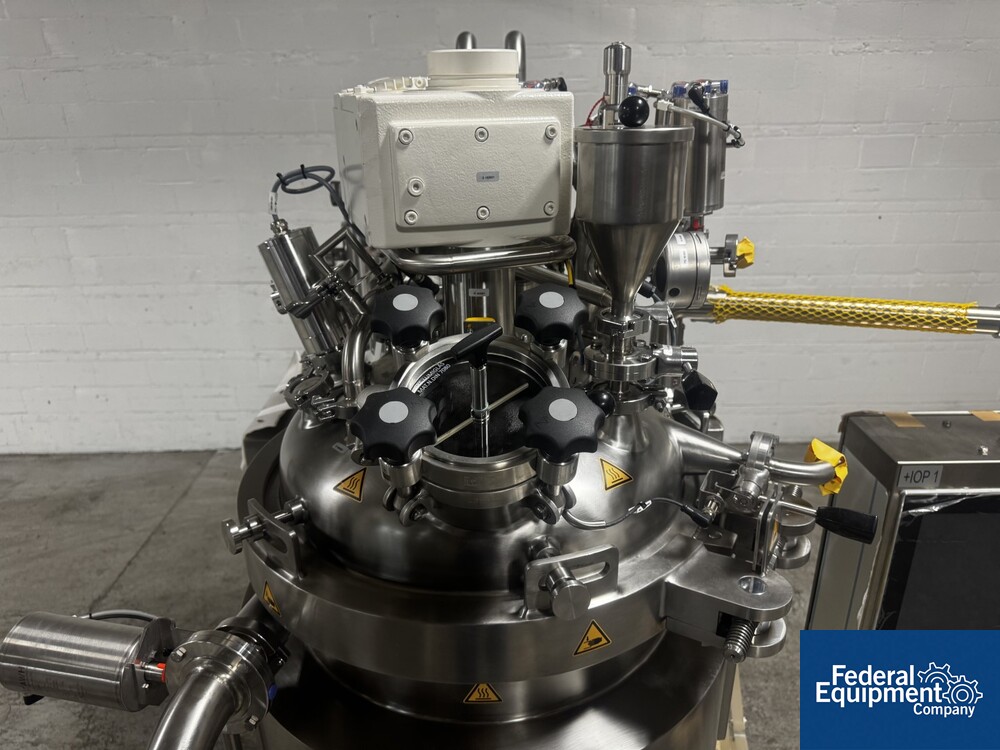

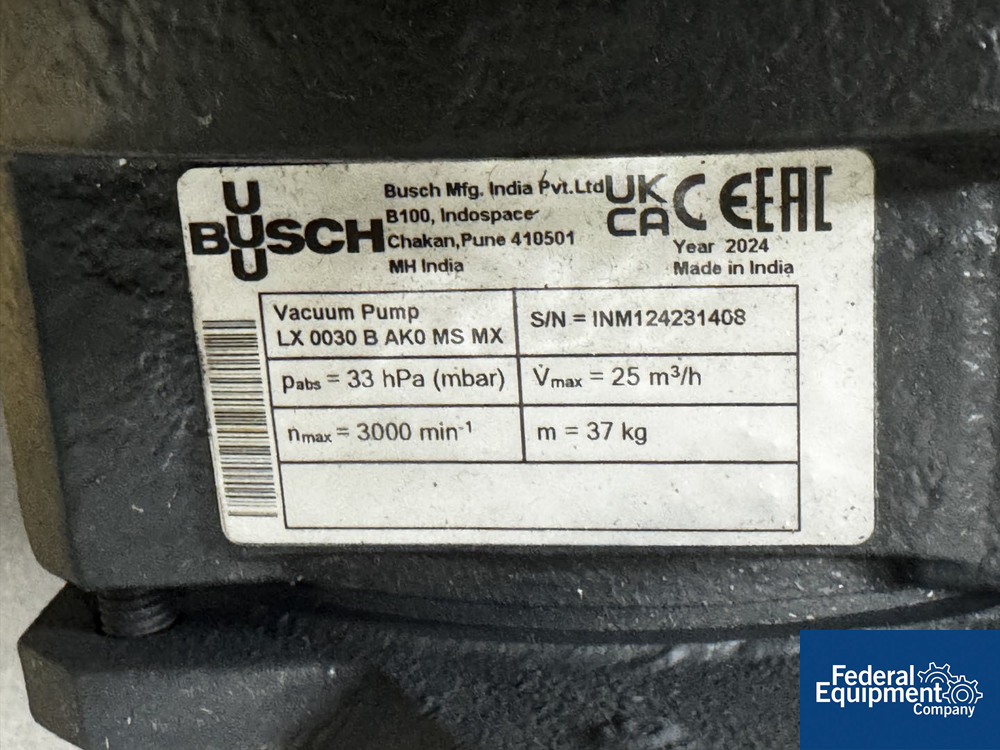

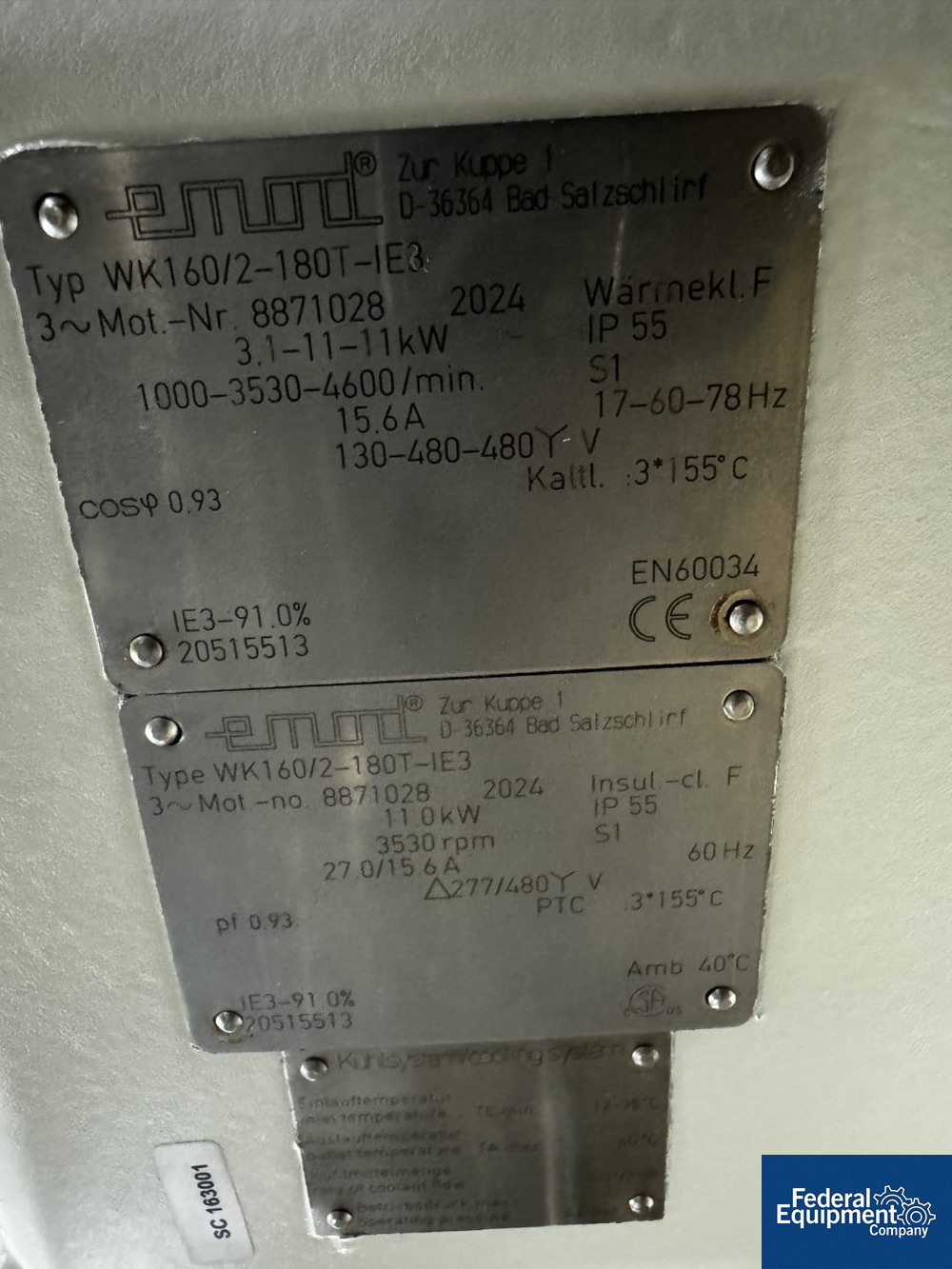

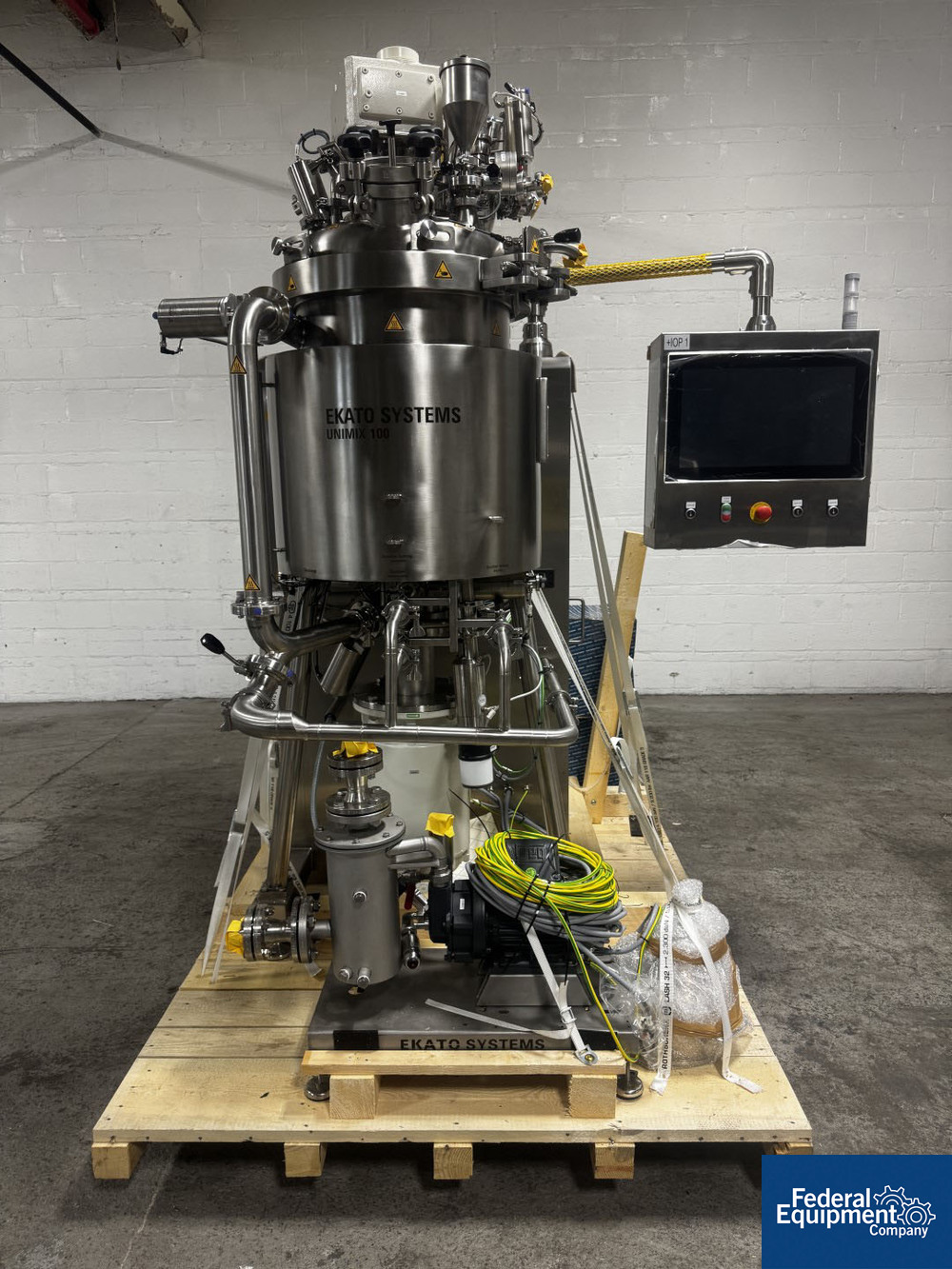

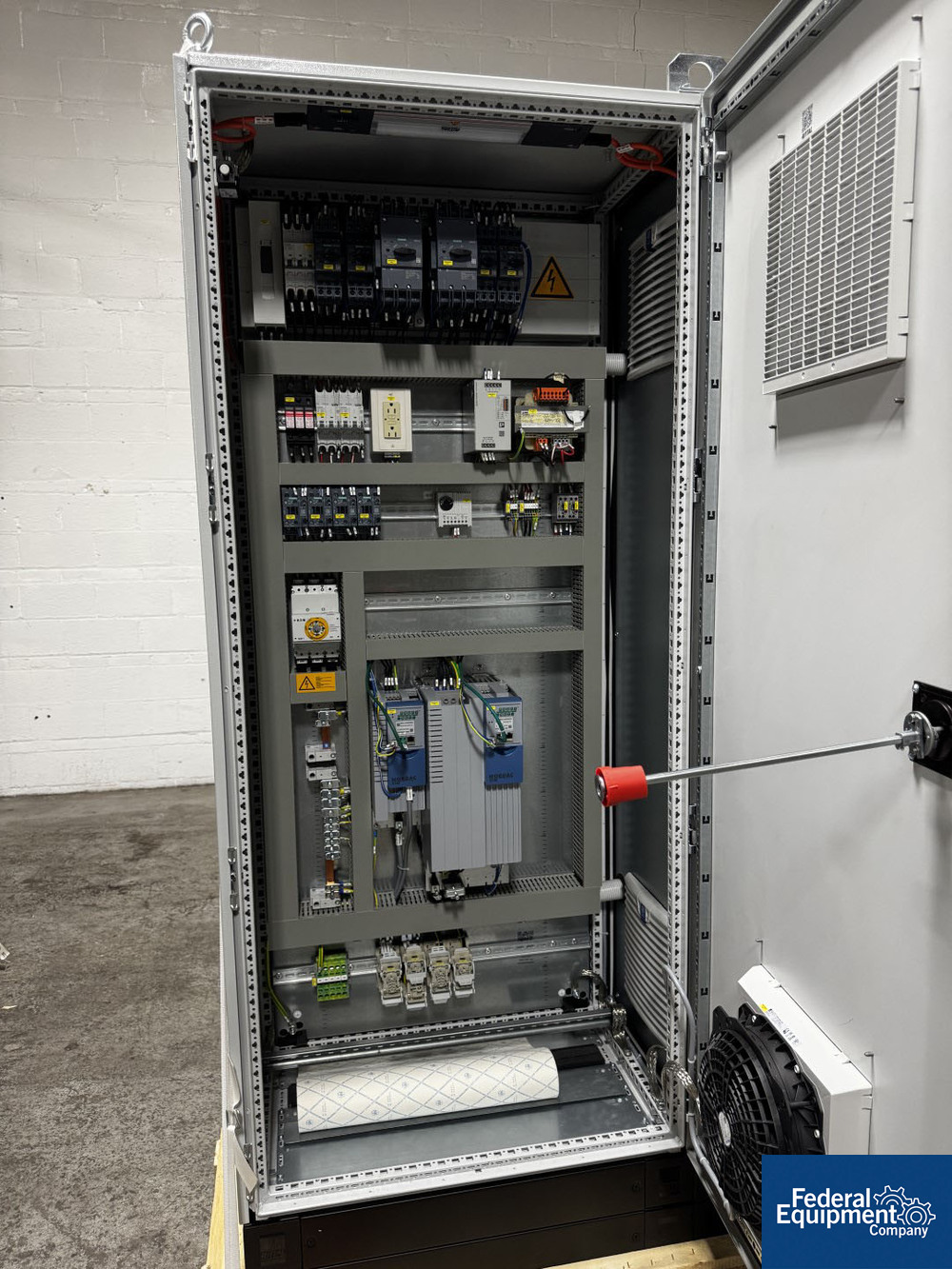

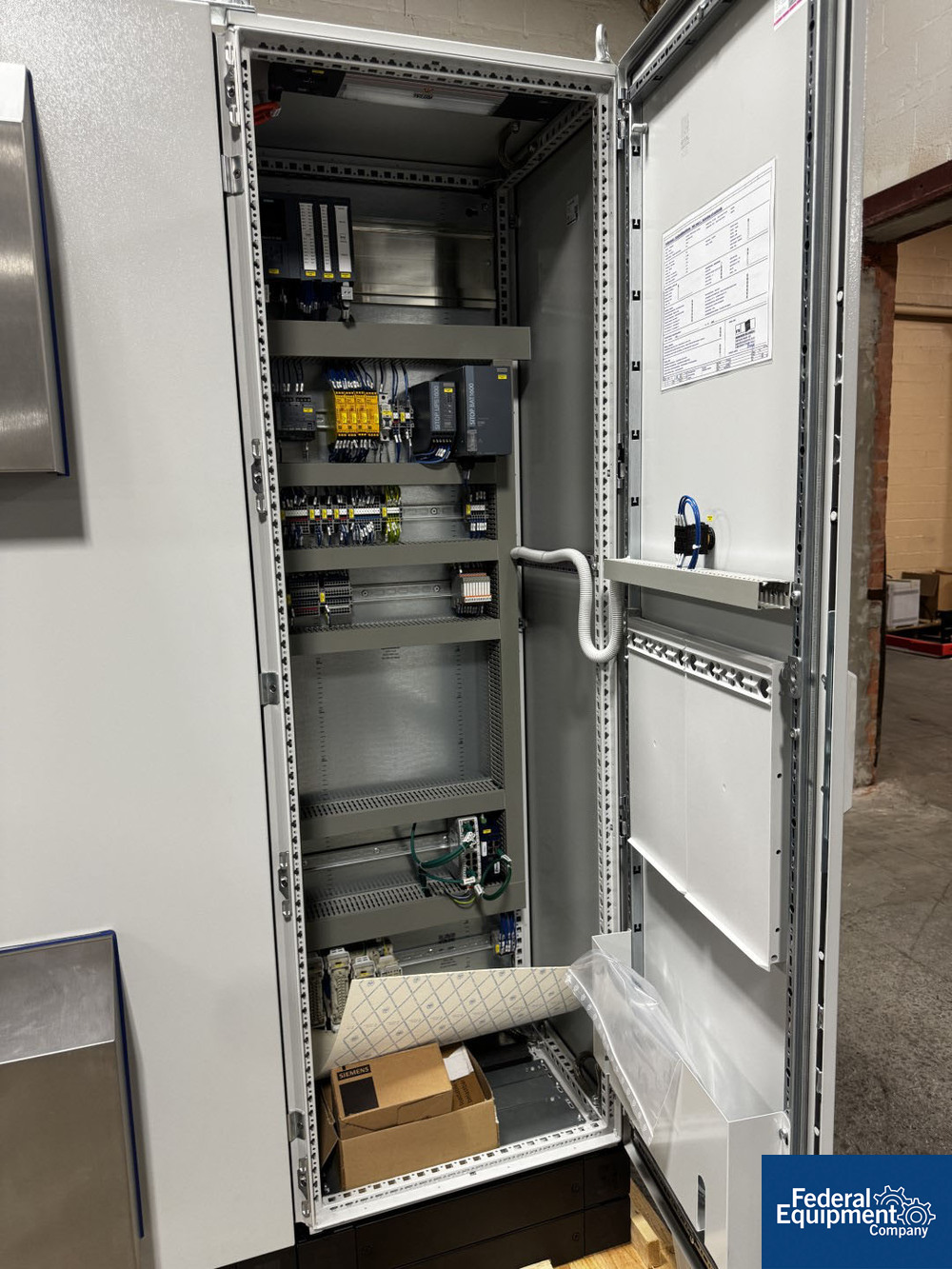

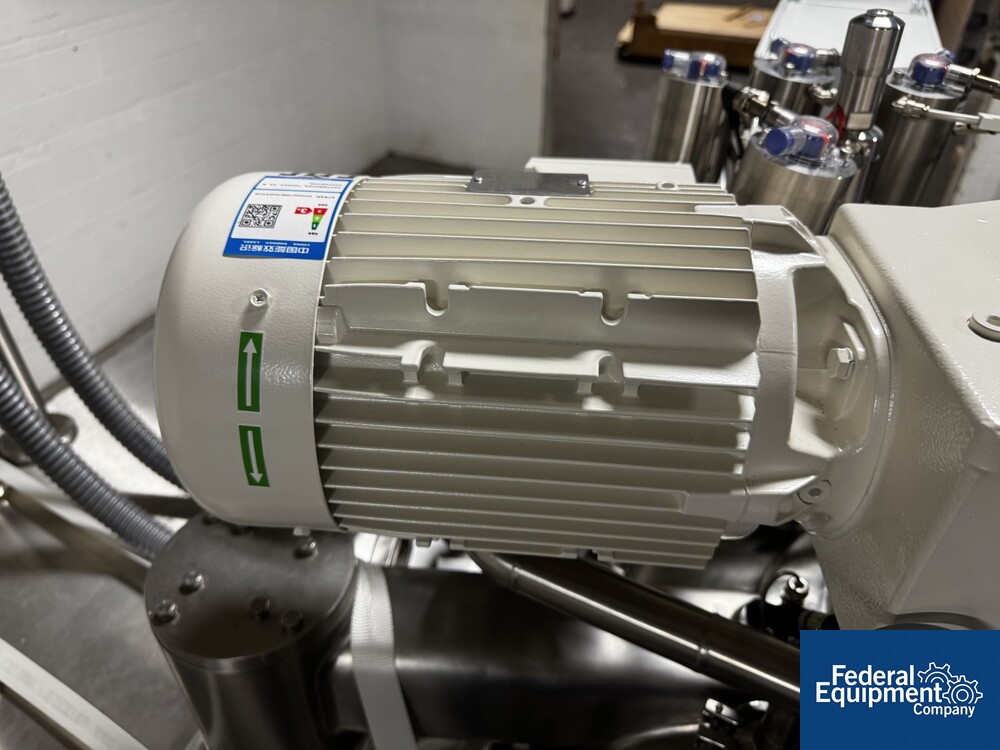

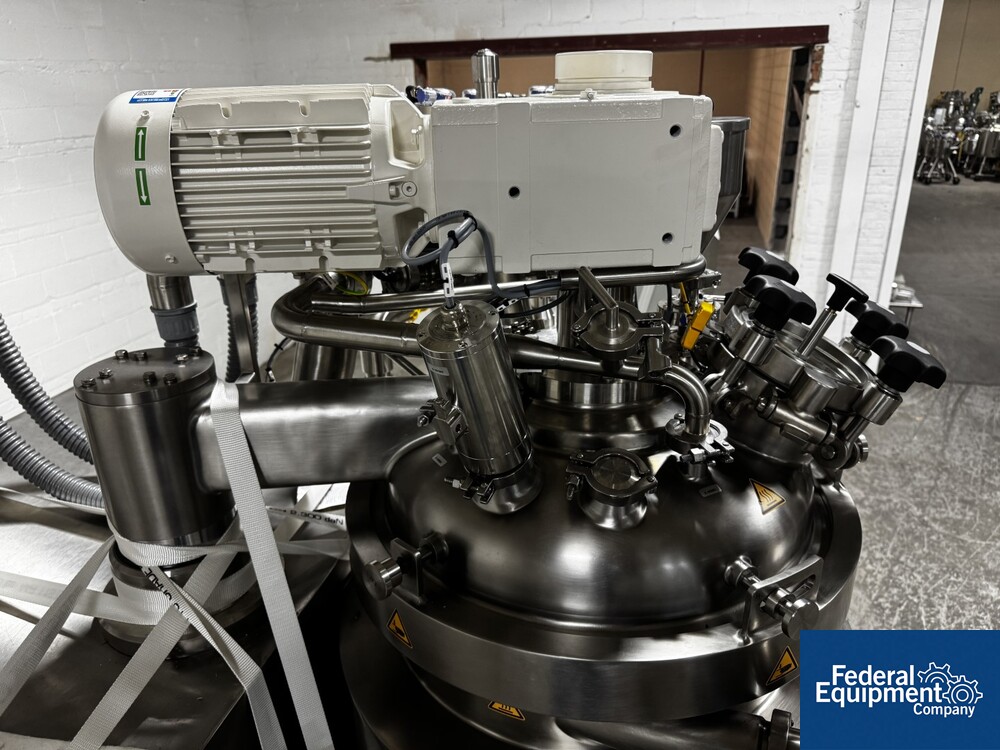

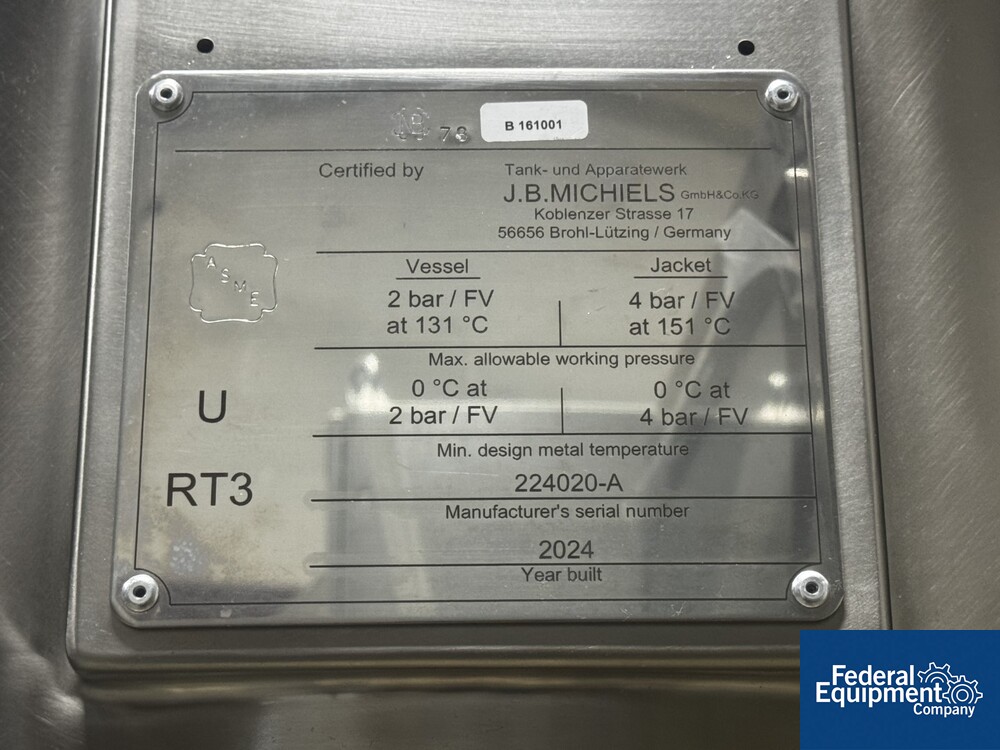

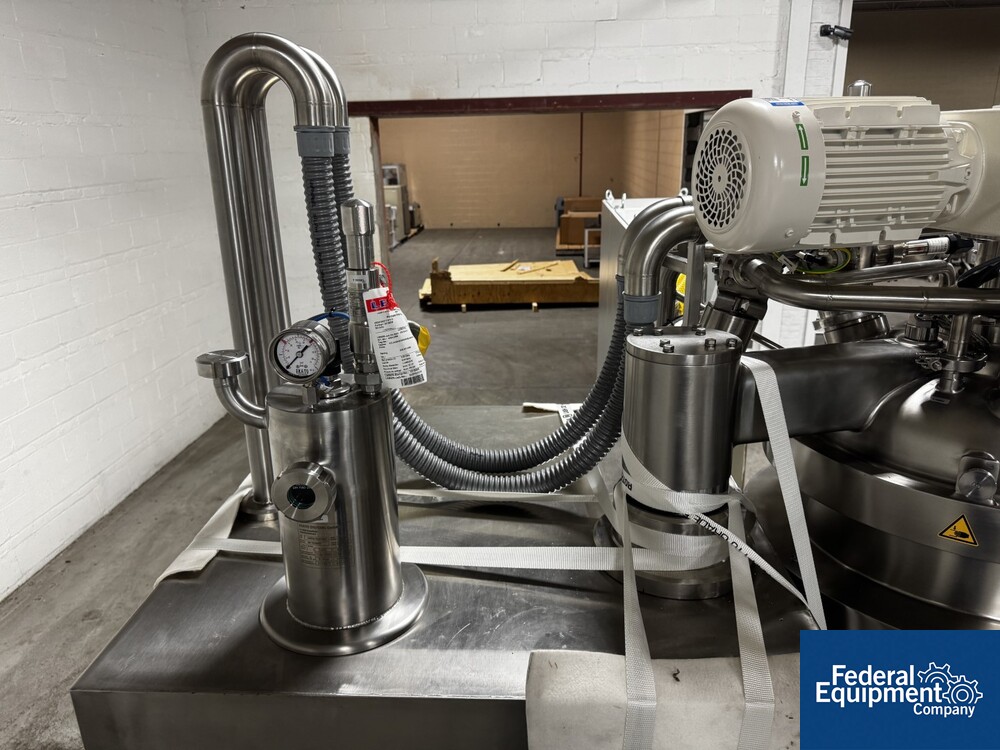

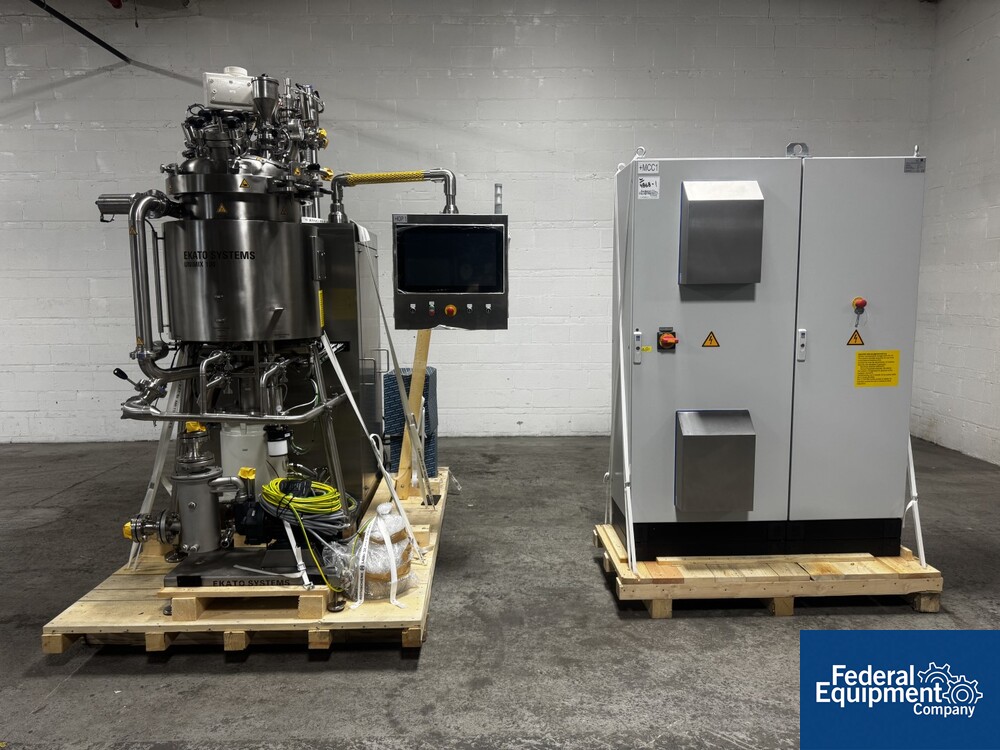

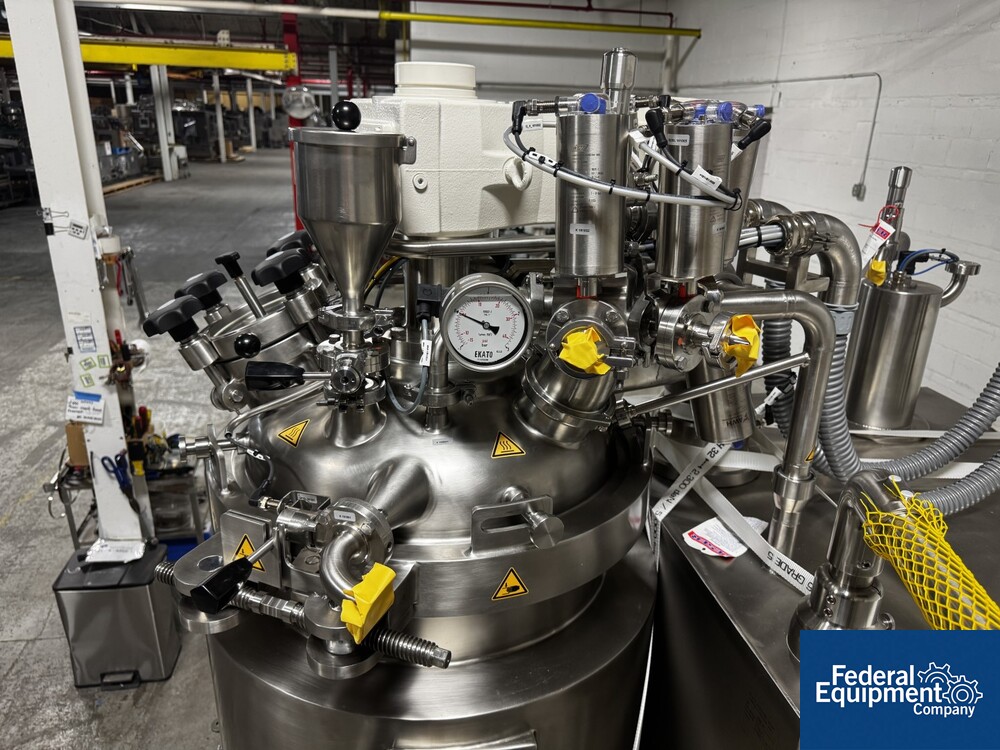

Unused 100-liter Ekato Twin Motion Vacuum Mixer, model UniMix, type SRC 100, with 316L stainless steel product contact surfaces. It has a 100-liter maximum working capacity and a 5-liter minimum working capacity, rated for -1/+2 bar (29 psi and full vacuum) at 133°C, and jacketed for -1/+4 bar (58 psi and full vacuum) at 151°C. Features include a top-mounted Ekato Paravisc axial Z-type mixer with bottom and sidewall scrapers, driven by a 3 kW motor. It also has a bottom-mounted Ekato S-Jet 500 high-performance rotor/stator homogenizer powered by a 11 kW motor, 480 volts, mechanical seals, and a control panel with PLC and VFD controllers, as well as an operator HMI, CE design rated. Busch vacuum pump, model LX0030, 1.5 kw motor. The vessel is ASME-rated and certified by JB Michiels, serial# 224020-A, national board# 78, Ekato project# 30065973-10, built in 2024. The system is unused, still on its original shipping skids from Ekato, with FAT performed.
- #2 motor HP: 4
- Capacity (Gallons): 26.42
- Chamber Volume: 100
- Drawings: Yes
- Internal Pressure (PSI): 29
- Jacket Pressure: 58
- Jacketed: Yes
- Material of Construction: Stainless Steel

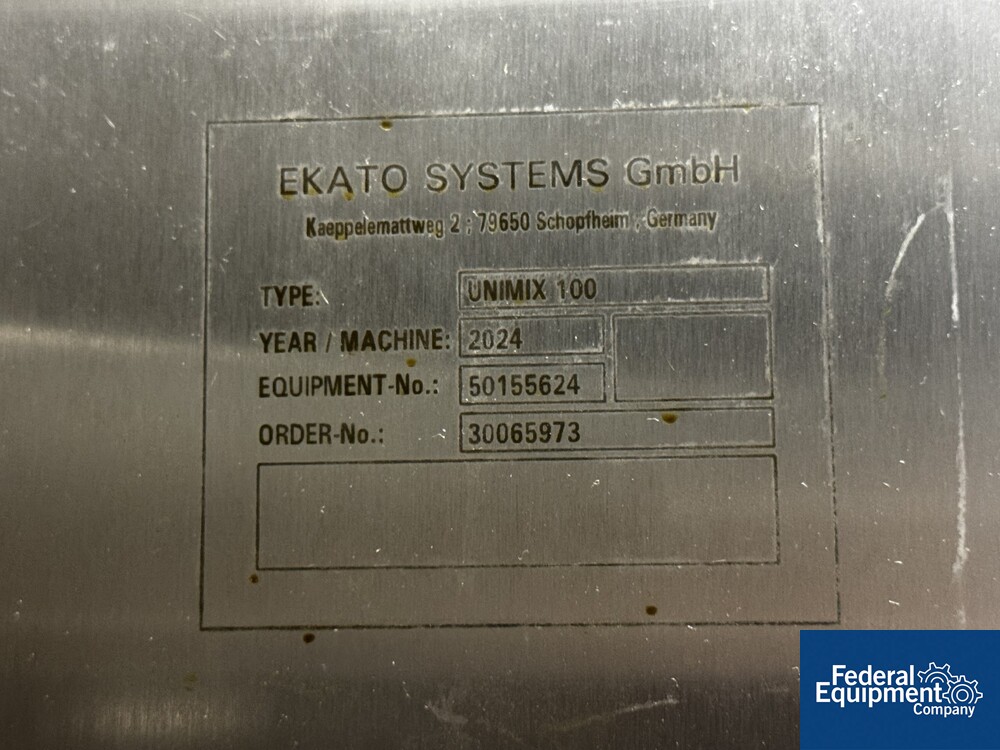

- Model: Unimix 100
- Motor: #hp: 15
- Serial Number: 30065973-10
- Stainless Steel Grades: 316L
- Vacuum Cover: Yes
- Voltage: 480
- Year of Construction: 2024
